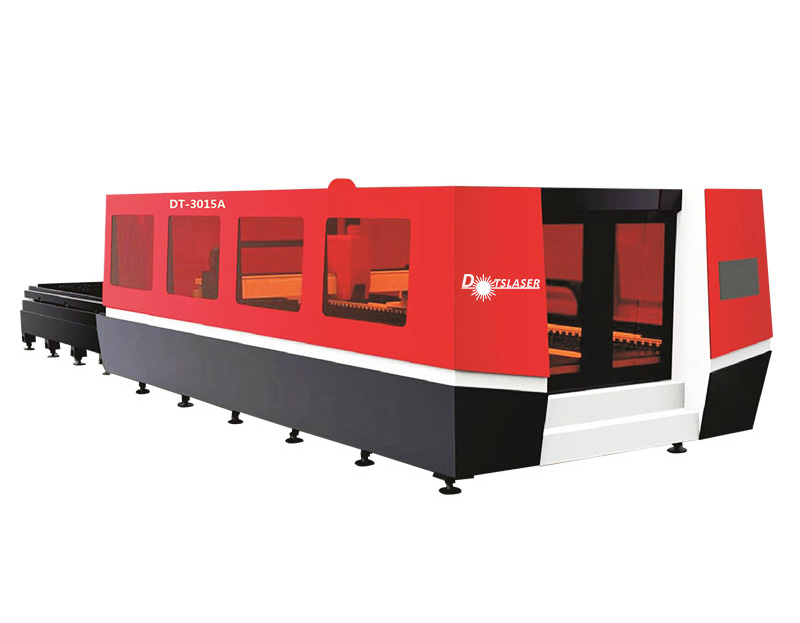

Full Closed Stainless Steel Fiber Laser Metal Sheet Cutting Machine
Full closed protection improves human security; Laser protection glass protect human beings from laser radiation; Automatic collection system of smokes and dusts is environment friendly;
Full closed protection improves human security; Laser protection glass protect human beings from laser radiation; Automatic collection system of smokes and dusts is environment friendly; Smart monitoring system reduces accident rate, giving us a beauty and health cutting process.
Parameters
| Model | DS-3015B | DS-4015B | DS-6015B |
| Laser power | 700W-3000W | 1000W-3000W | 1000W-3000W |
| Laser wave | 1070nm | 1070nm | 1070nm |
| Working area | 3000mm*1500mm | 4000mm*1500mm | 6000mm*1500mm |
| X/Y-axis positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| X/Y-axis re-positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y-axis max travel speed | 80m/min | 120m/min | 140m/min |
| Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
| Power request | 380v 50hz 3ph | 380v 50hz 3ph | 380v 50hz 3ph |
| X,Y axle Max. accelerate speed | 1.2G | 1.2G | 1.2G |
| Working temperature | 0-45℃ | 0-45℃ | 0-45℃ |
Application
1. Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
2. Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

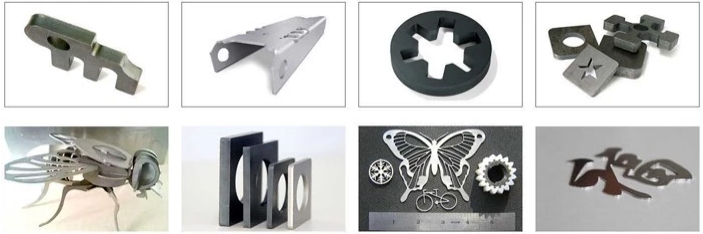

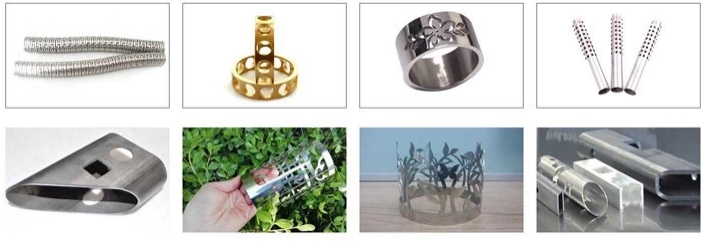

Sample
