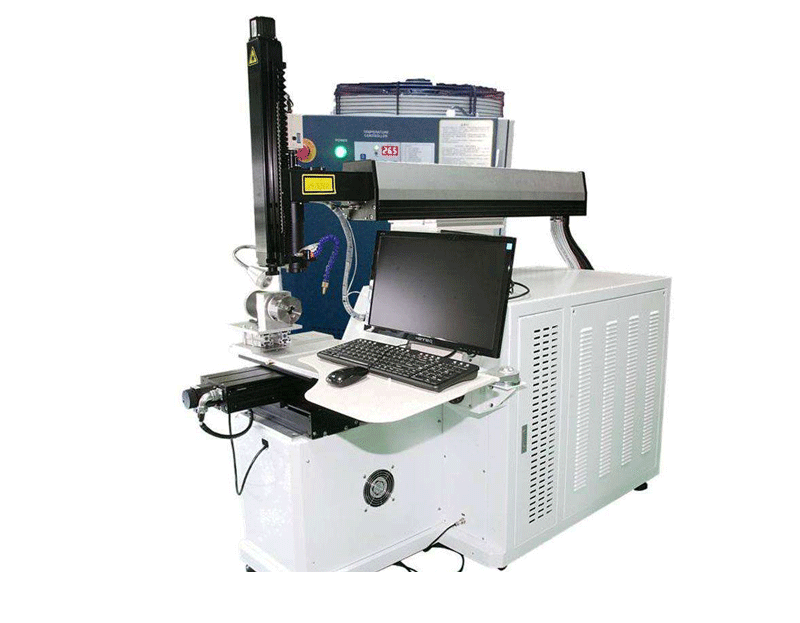

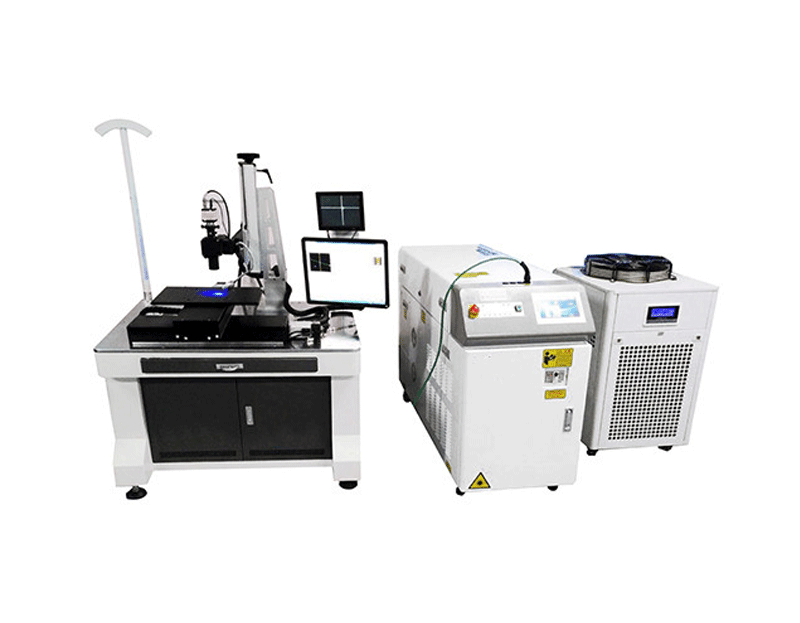

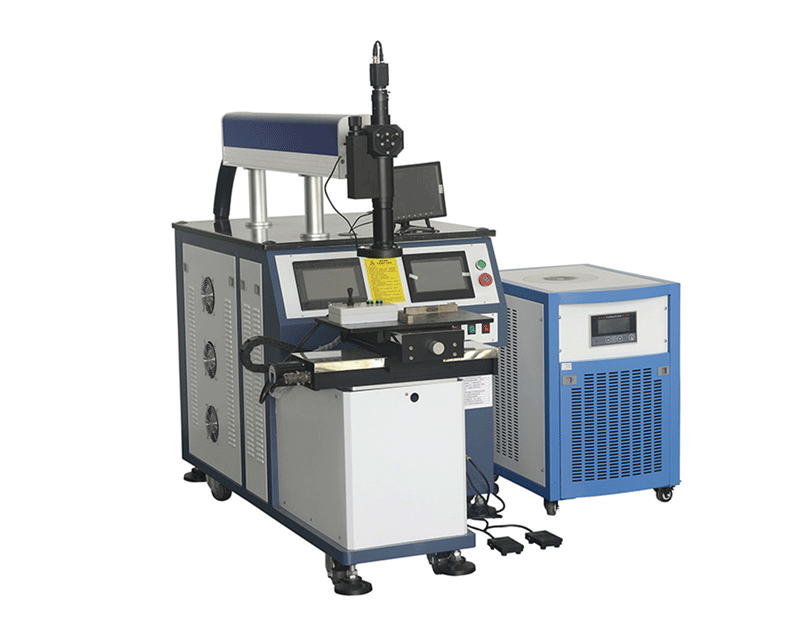

Fiber Transmission Laser Welding Machine
Optical fiber transmission laser welding machine mainly applied for welding on the thin wall material,precision parts,which can realize spot welding,butt welding,welding stack,seal welding,etc,very small welding width and heat affection area，small deformation,high welding speed，smooth and nice welding seam high welding quality. no pores，can control precisely small focusing point, high positioning accuracy
Description
Optical fiber transmission laser welding machine mainly applied for welding on the thin wall material，precision parts， which can realize spot welding， butt welding，welding stack，seal welding，etc，very small welding width and heat affection area，small deformation,high welding speed，smooth and nice welding seam high welding quality. no pores，can control precisely small focusing point, high positioning accuracy
Advantage
1:The welding spot energy distribution evenly
2:I/O interface,the user can control the welding machine easily by spectral energy spectroscopic or time,timing welding can be realized.
3:Special jig automation can be customized,realize the product batch production
4:Adapt to all kinds of complicated welding,all kinds of spot welding，and thin seam welding less than 1mm Equipped with CCD camera surveillance system,convenient observation and accurate positioning
Application Field:
Optical fiber transmission laser welding machine mainly applied for welding on the thin wall material，precision parts，which can realize spot welding， butt welding,welding stack，seal welding, etc，very small welding width and heat affection area，small deformation，high welding speed，smooth and nice welding seam high welding quality. no pores，can control precisely，small focusing point，high positioning accuracy .
Parameters
| Model | DT-DL200 DT-DL300 DT-DL400 DT-DL500 DT-DL600 |
| Laser power | 200W/300W/400W500W/600W |
| Laser wave | 1064nm |
| Laser Type | YAG |
| Output power stability | ≤2% |
| Frequency | 1-100hz1-300hz1-500hz ( Continuous adjustable) |
| Pulse width | 0.1-20ms |
| Max single Pulse energy | 90J 100J 120J 135J 150J |
| Max single pulse welding depth | 0.1-0.5mm 0.1-0.7mm 0.1-1.0mm 0.1-1.5mm |
| Optimal operating environment | Temperature 10-35 ° C, humidity 20% -80% |
| Cooling Mode | Water Cooling |
| Fiber diameter | 200um 300um 400um 600um |
| Fiber transmission quantity | ≤4 |
| Beam split model | High speed time beam splitting or precision energy beam splitting |
| Feedback model | Current real-time feedback |
| Observing system | CCD monitor system |
| Power consumption | ≤6KW ≤8KW ≤12KW ≤16KW ≤18KW |
| Voltage | 380V±10% 50HZ |
| Working table travel | 200mm＊200m to 1200mm＊1200mm |
| Size of machine | 1200mm*700mm*1030mm |

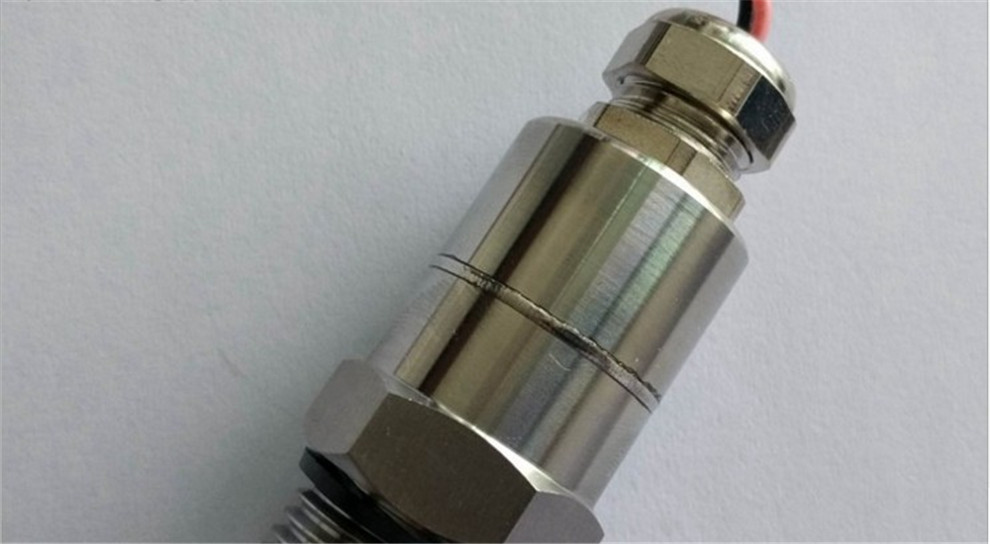

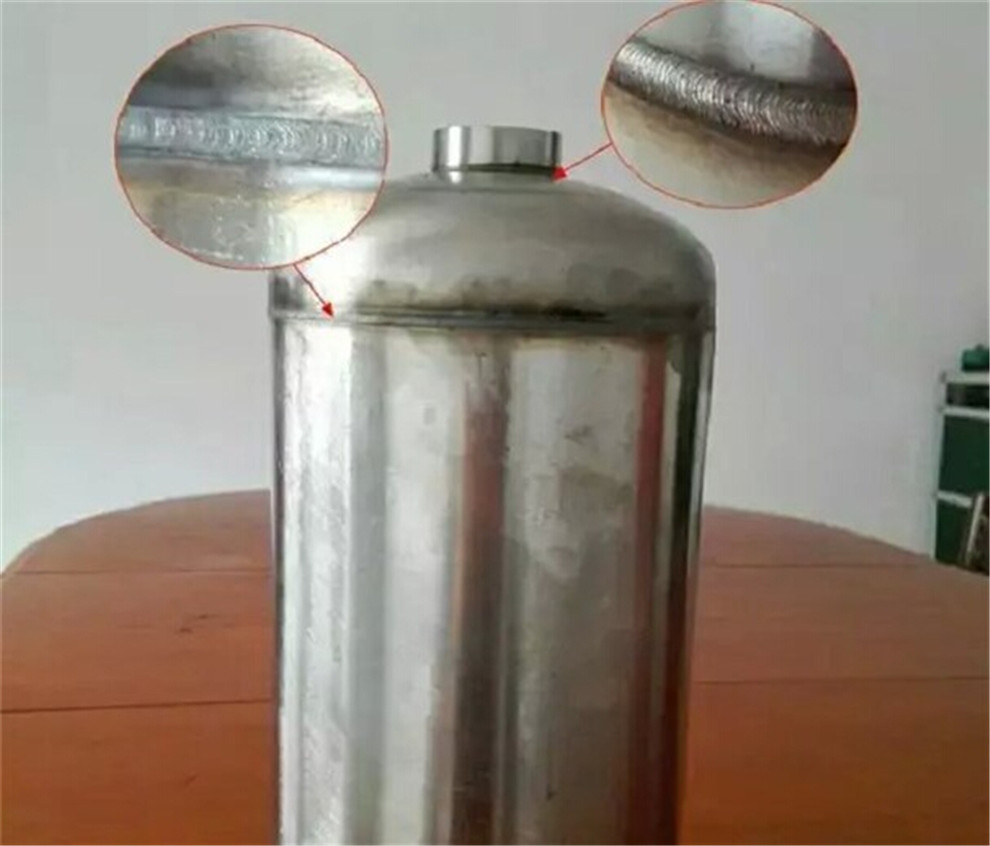

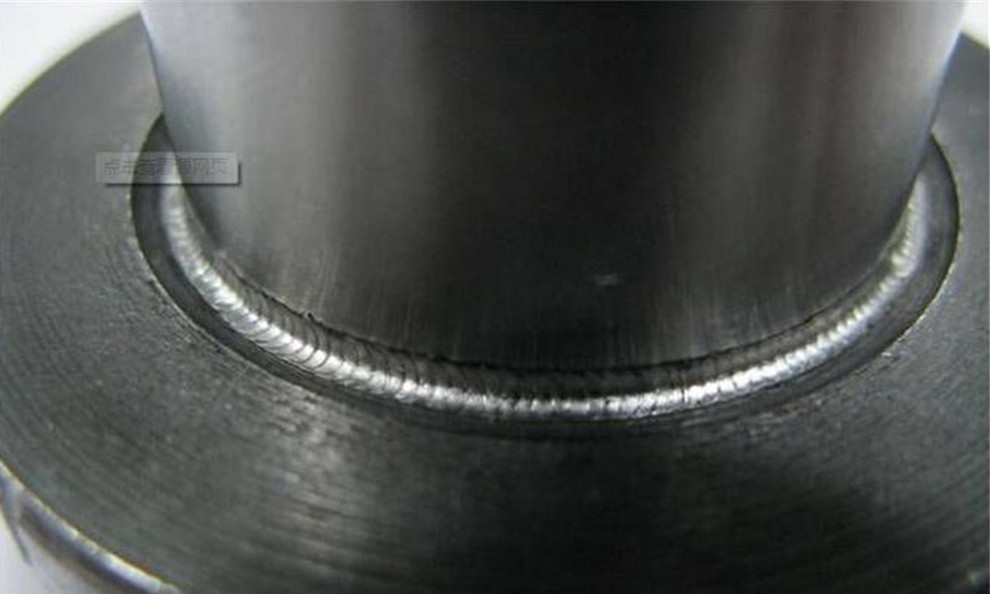

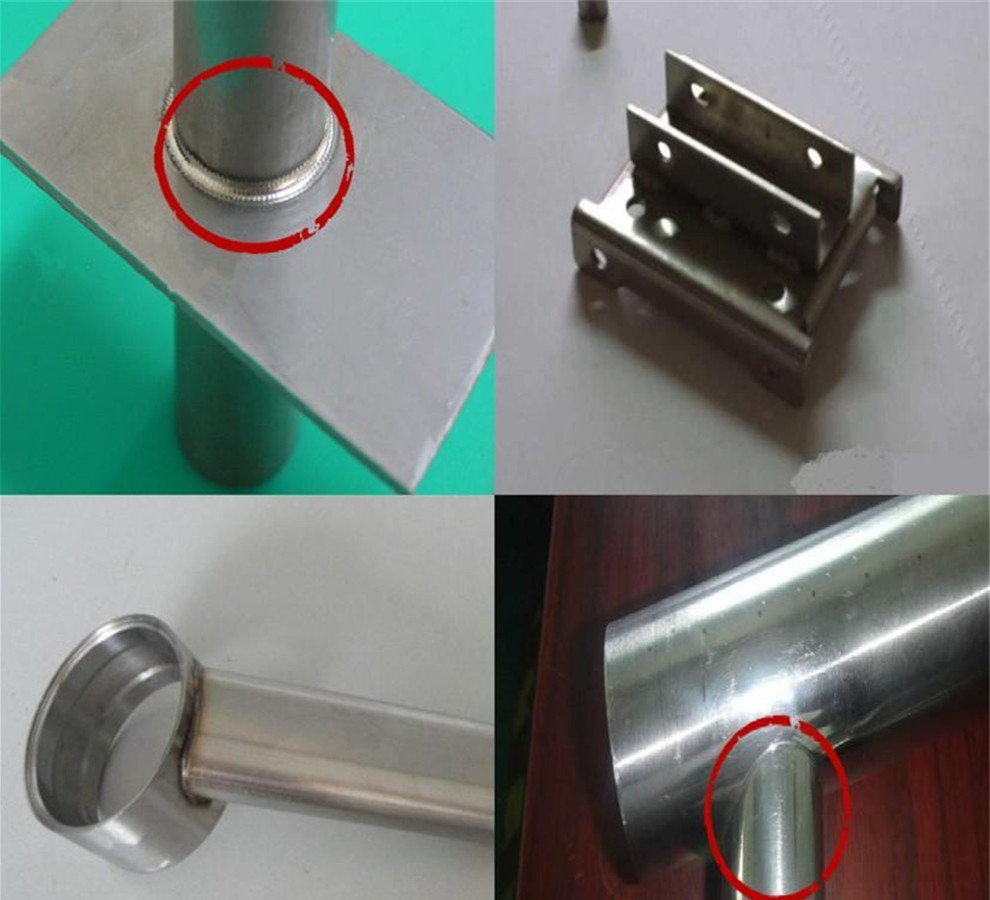

Samples
