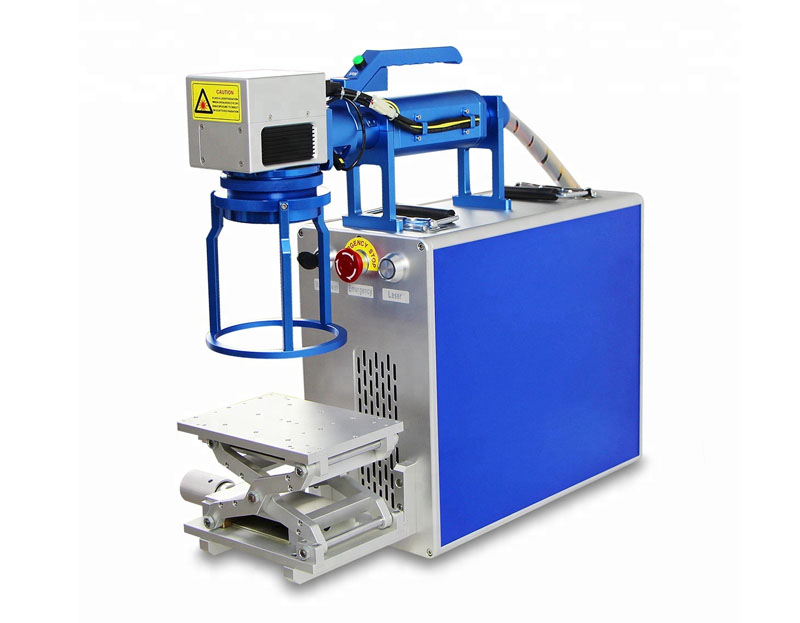

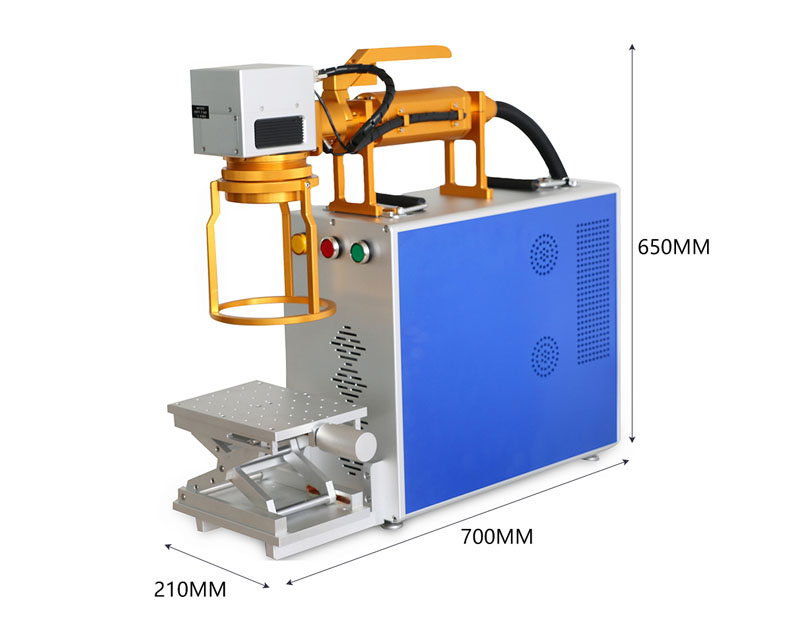

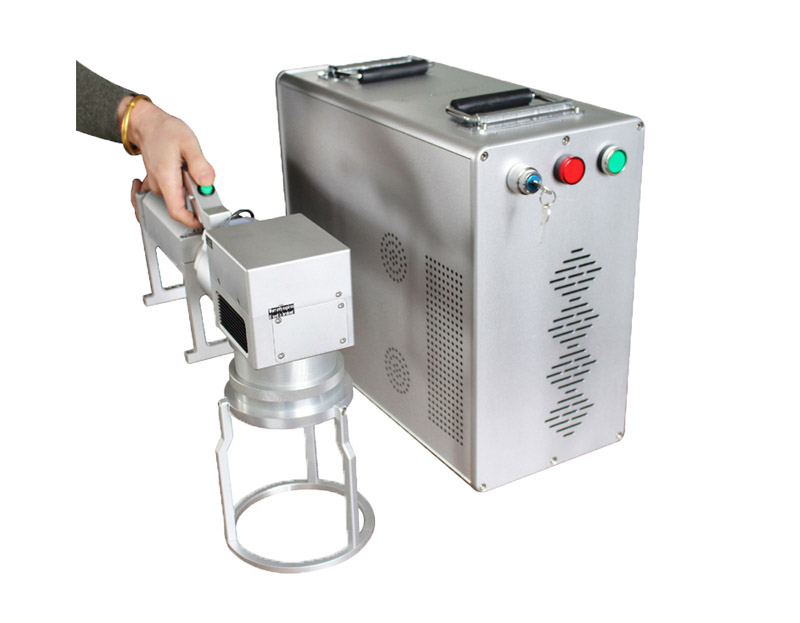

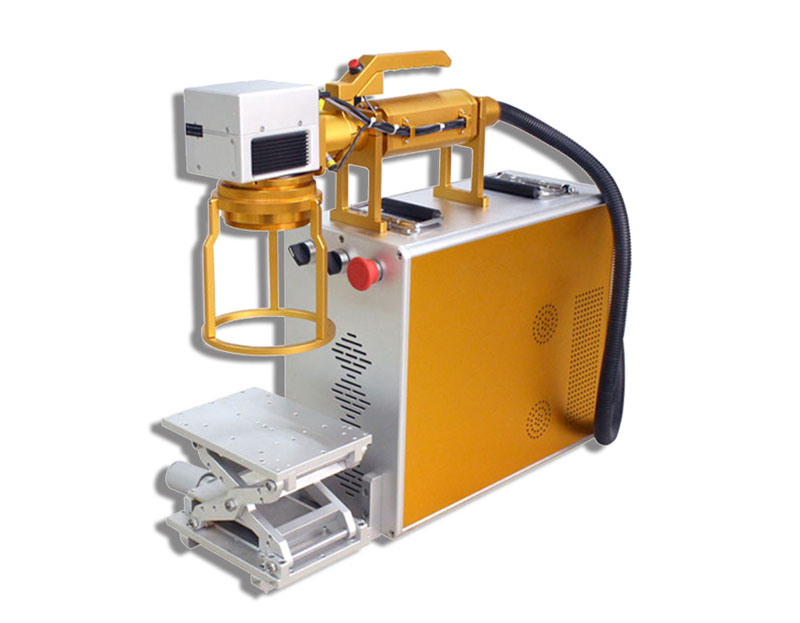

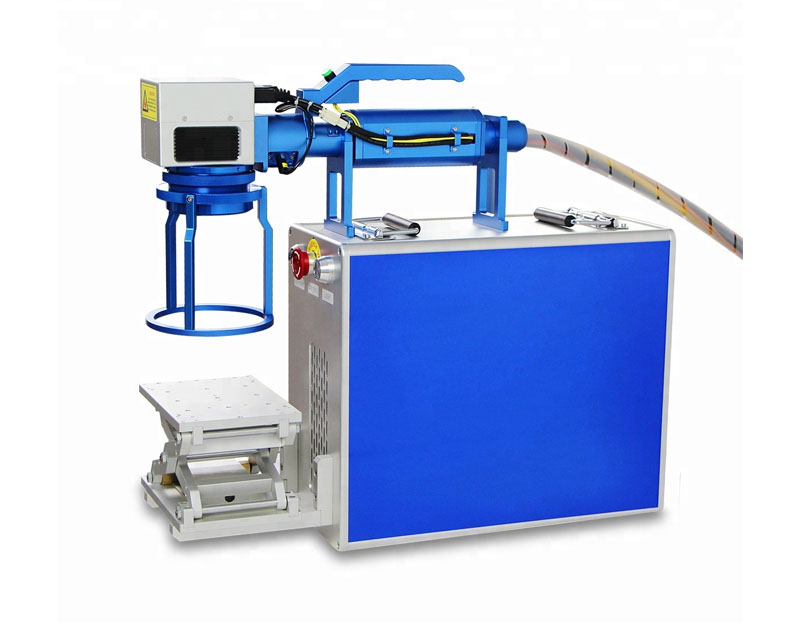

Handheld type fiber laser marking machine

Handheld type laser marking machine work on almost all metal materials and some non-metal material,such as steel, carbon steel, stainless steel, iron,copper,brass,silver, aluminum,PVC,ABS,PC,etc.


Product Details

Application



· Electronics : Iphone, IPAD, Ipod, Keyboard and more standard parts.

· Jewelry & Acessories : Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.

· Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.

· Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

· Instrument: Panel Board, Nameplates, Precision equipment, etc.

· Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

· Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights

· Handicrafts: Zipper, Key Holder, Souvenir,etc.



Machine Features

1)Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life(normal working life of 100,000 hours), high efficiency, free from maintenance, convenient to be installed and taken away.

2)The whole machine is easy operation, and one key to control the power on and off.

3)With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.

4)With superior laser beam, and precise light spot, it is no need of consumable items.

5)The scanning galvanometer is imported with original packaging, and with compact size and fast speed, adopt precise location, the software operation is simple and function is strong.



Product Advantages

1.Laser source

Top brand  imported or Chinese laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm;The laser's overall 2-year warranty.

2.Control Board & Control Software

Famous brand original EZCAD Control system with high stability and easy operation,good performance ,support win7,win8,win10.

3.Control Button.

Humanized control system,easy to operate,dust proof design.Electrical up-down button

4.High-speed Digital Galvanometer scanning system with fast marking speed,digital signal,high precision.With double laser pointer for auto focus

5.F-Theta Lens

High quality and very fine focusing,working area is optional.

6.Rotary Device(Optional)



Specifications:

• Laser-type : Fiber laser source 1064nm

• Laser power: 20W/30W/50W

• Machine Power: 220VAC

• Engraving area: 100*100mm, 175*175mm

• Max engraving speed: 8000mm/min

• Laser output control: 1-100% software setting

• Location precision: less than 0.003m

• Operating temperature: 0 - 45C

• Operating humidity: 5- 95% non-condensing

• Minimum shaping character: English 0.1x0.1 mm

• Cooling mode: air cooling

• Controlling software: EZCAD

• Compatible software: CorelDraw, AutoCAD, Photoshop, ...and more

• File formats supported: JPG, BMP, PLT, DST, DXF, AI...

• Color separation: Uses color property to set function, speed, frequency and laser power.

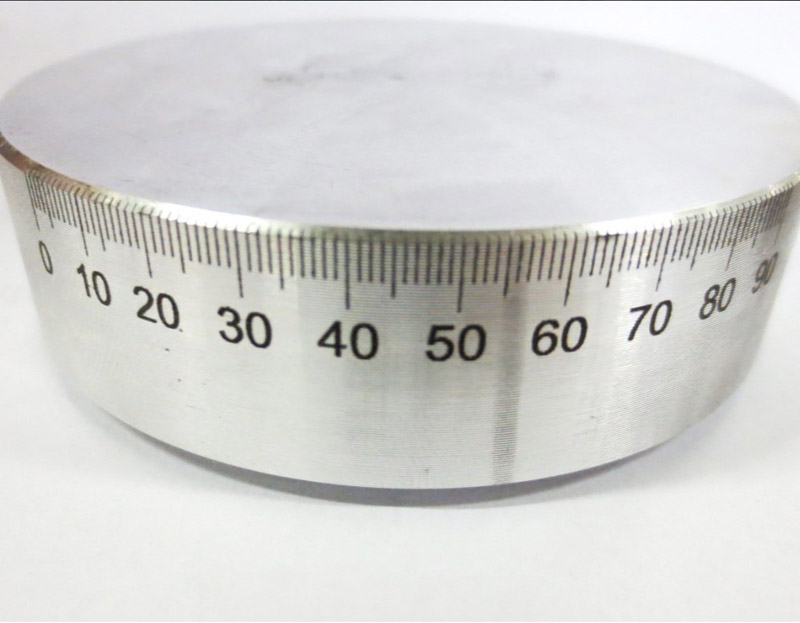

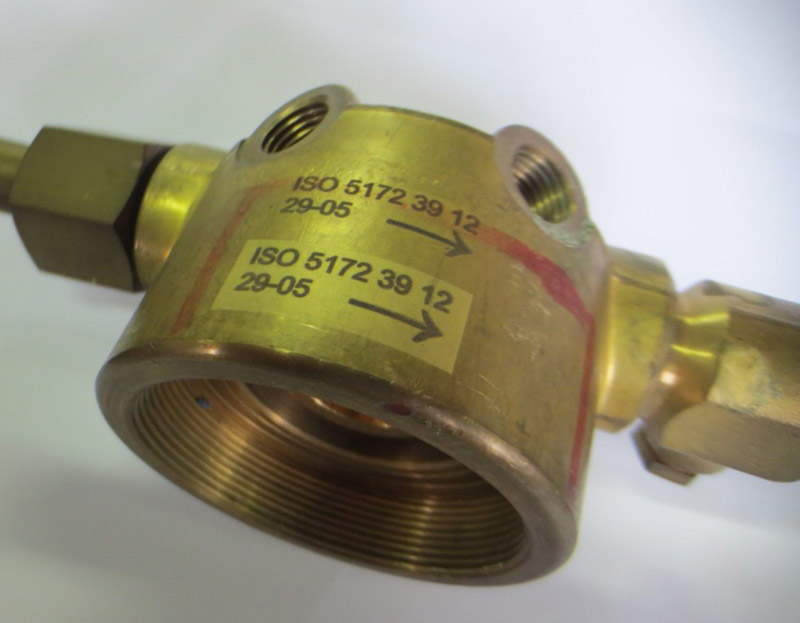

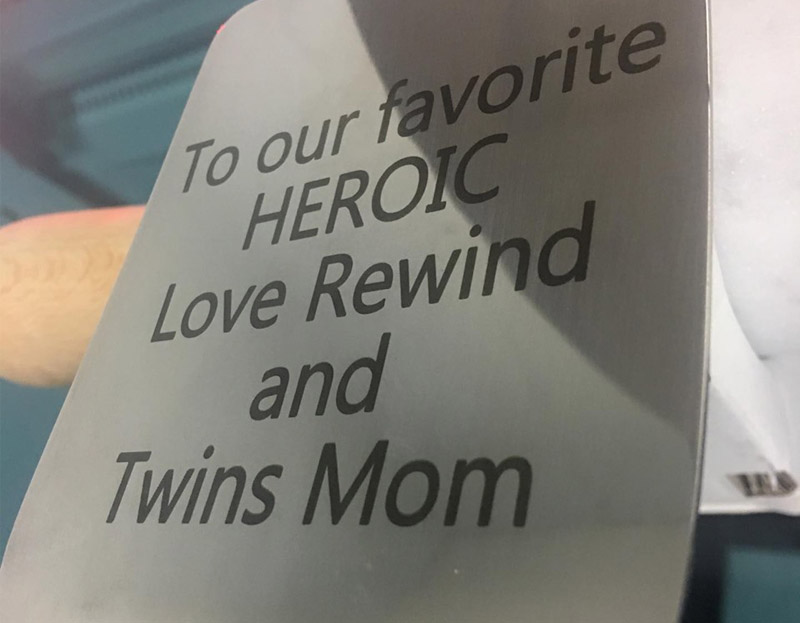

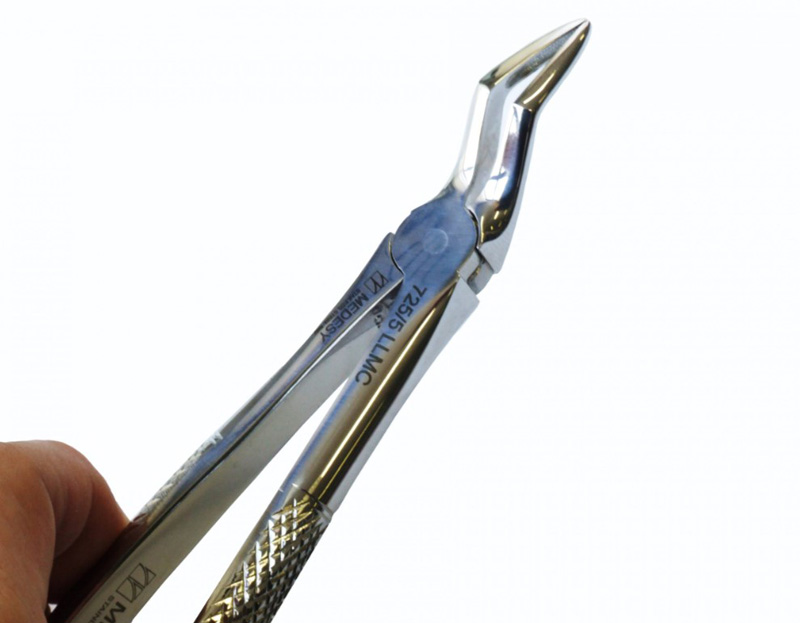

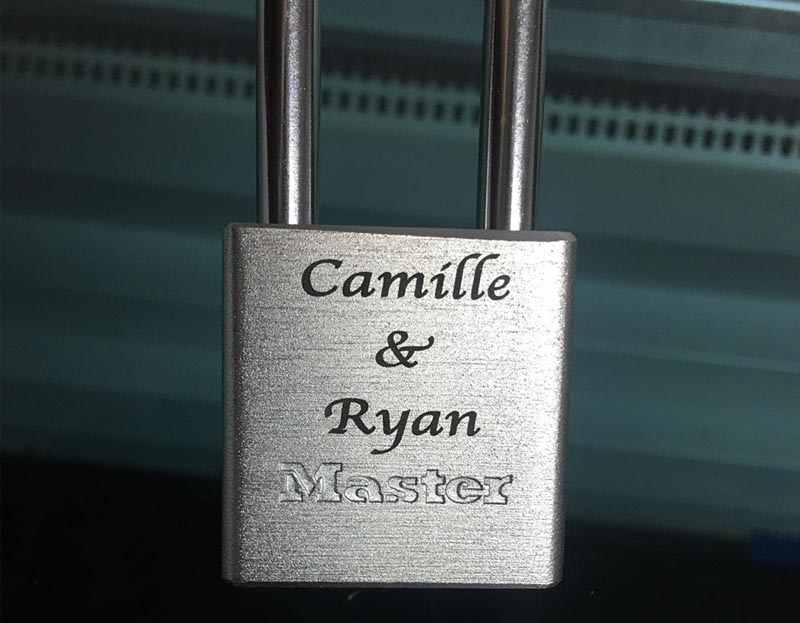

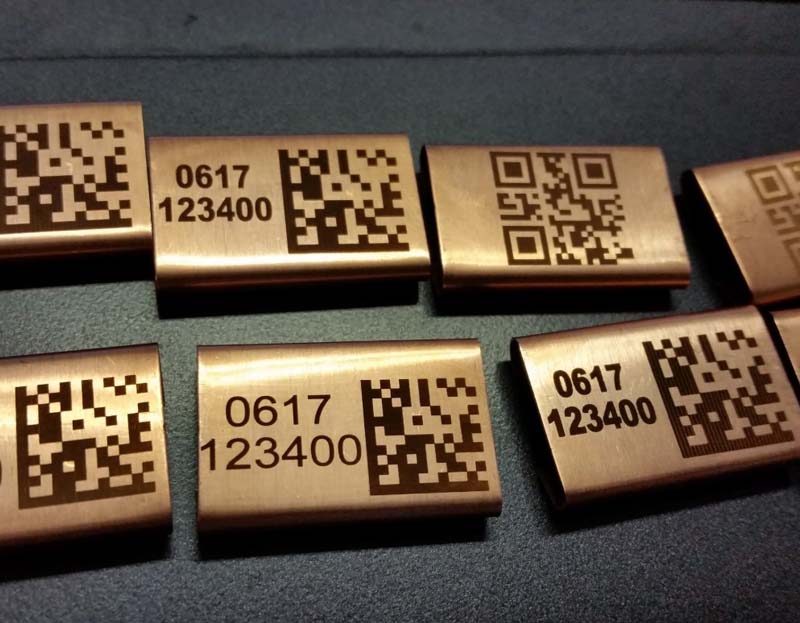

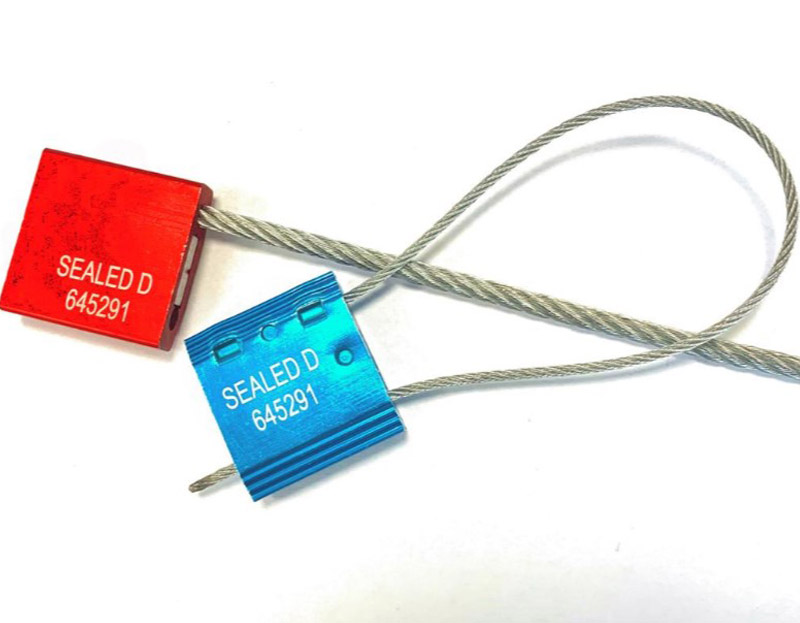

Sample

Handle type fiber laser marking machine

Handle type fiber laser marking machine

Handle type fiber laser marking machine

Handle type fiber laser marking machine

Handle type fiber laser marking machine

Handle type fiber laser marking machine

Handle type fiber laser marking machine
