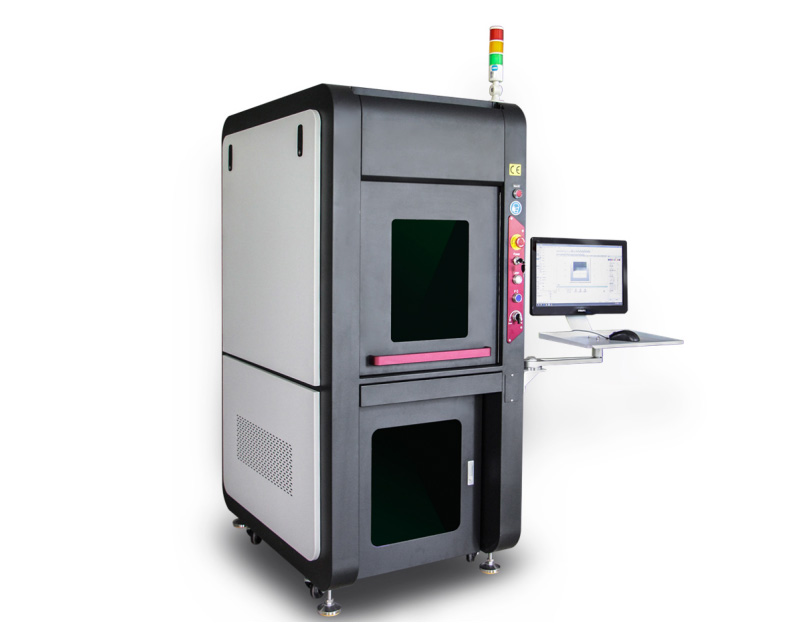

Enclosed safety cover fiber laser marking machine

Application: almost all metal materials and non-metal material, such as steel, carbon steel, stainless steel, iron, copper,brass,silver, aluminum,PVC,ABS,PC,etc.



Video
Product Details

Advantages/characteristics:

1. Fast speed, high efficiency

2. Processing area is optional.

3. No consumable parts, only power supply is ok.

4. Very economical machine.

5. Easy to learn and operate.

6. Stable and free maintenance.

7. Laser source is optional for different work with different power and result.

8. Easy to move around.

9. Long lifetime, 100,000hrs life and 24hrs work continuously.

10. Low working environment requirement.

11. Compatable and small volume.


Parameter

Laser power20W/30W/50W/60W/100W     Enclosed safety cover fiber laser marking machine
Laser lifespan100,000 hours
Laser beam1064nm
Optical quality㎡ ≤ 1.5
Repeat frequency30khz-60khz
Marking speed≤8000mm/s
Marking range100mm*100mm(standard),
Min. Line0.01mm
Repeat precision±0.001mm
Power consumption≤900W
VoltageAc220v 50Hz 5A
Cooling modeAir cooling
Supported charactersAny fonts downloaded on computer
Supported formatPLT,DXF、BMP、JPG、PNG、TIF、PCX、GIF、 etc.
Supported Bar codeCODE39,EAN, CODE128 ,DataMatrix,PDF417 etc.

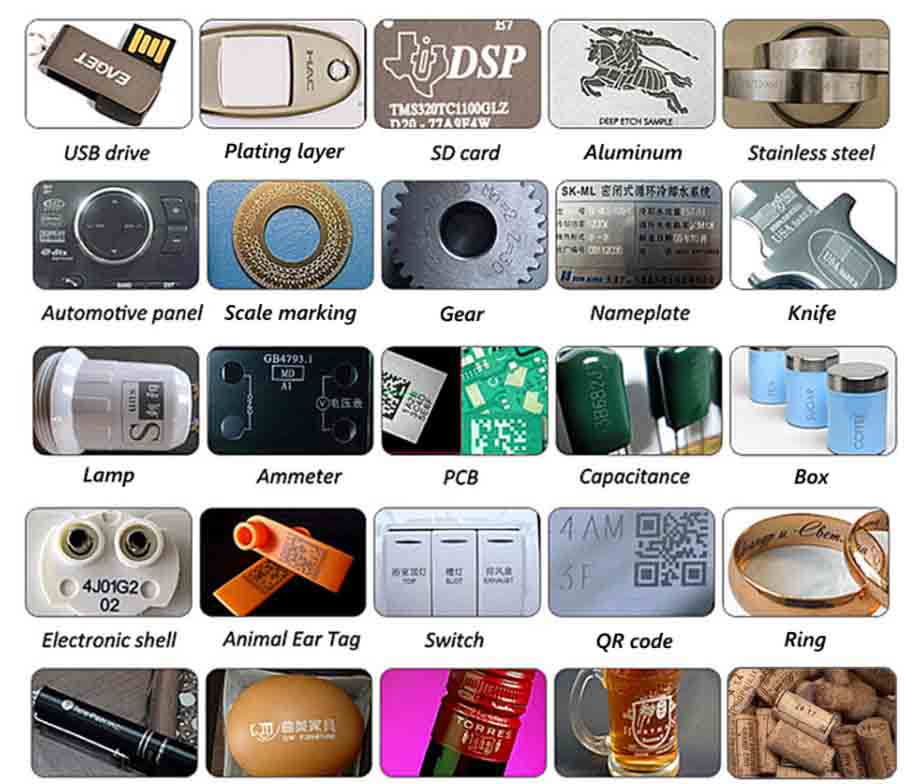

Samples:

Enclosed safety cover fiber laser marking machine

Desktop Fiber Laser Marking MachinesDesktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines

Desktop Fiber Laser Marking Machines


Certificate
