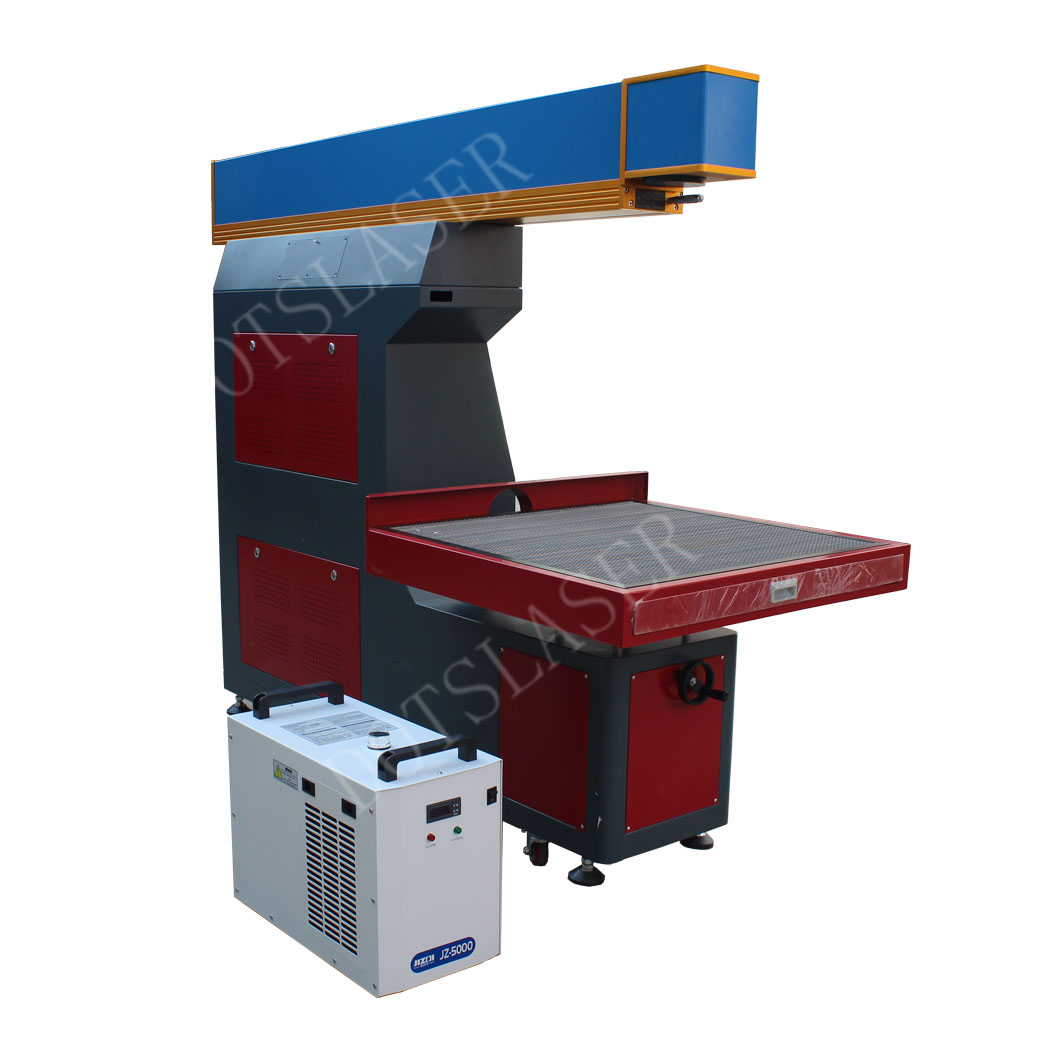

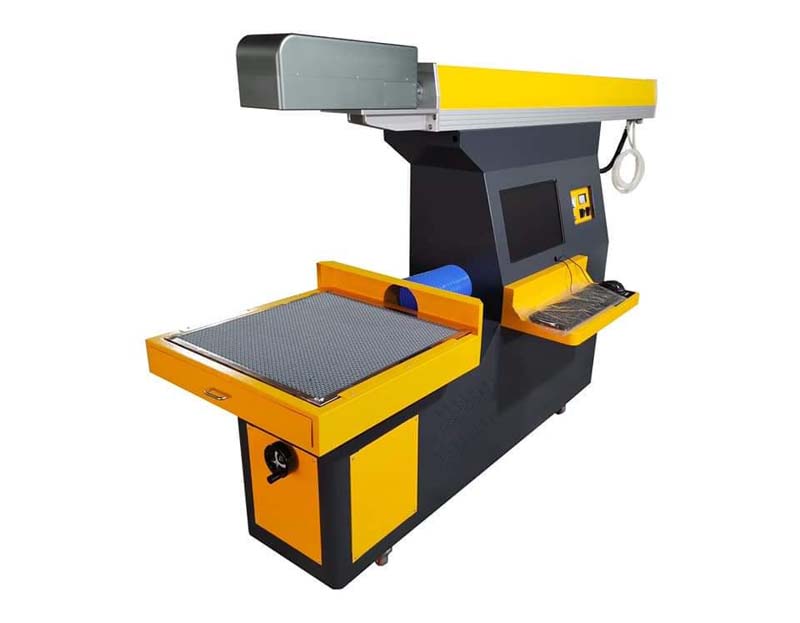

CO2 laser marking engraving on wood
Dotslaser CO2 Laser Marking Machine can use almost all the non metal material ,attach with metal RF laser tube or glass tube ,adopt to different customer needs .
The wood engraving machine which can make perfect result on wood . Laser patterns can be customized, diversified, refined product effect without secondary processing.Why not choose it .
Description
Dotslaser wood CO2 Laser Marking Machine can use almost all the non metal material ,attach with metal RF laser tube or glass tube ,adopt to different customer needs .
CO2 laser marking machine mainly for marking and cutting big range nonmetal material, such as leather, fabric, arylic, paper etc with fast speed and high precision.
Machine Features
1.Stable laser output,fast marking speed, strong cutting ability,high precision.
2.Optional motorized Z to get best laser spot and laser intensity for different marking area size.
3.3D dynamic galvanometer system, fast marking speed, bigger working range.
4.With red light locating system, ensuring processing accuracy,minimizing production wastes.
Marking area can be adjusted according to different precision requirements.
Parameters
| Model | DS-GLB |
| Laser power | 60W-150W |
| Laser wave | 10640nm |
| Optional Working area | 400mmx400mm-800mmx800mm |
| Laser Type | CO2 |
| Marking Speed | ≤7000mm/s |
| Life of laser producer | 20000Hrs |
| Cooling Mode | Water Cooling |
| Power request | 220v 50Hz 5ph |
| Power consumption | ≤8000W |
| Working temperature | 0-38℃ |
Samples
