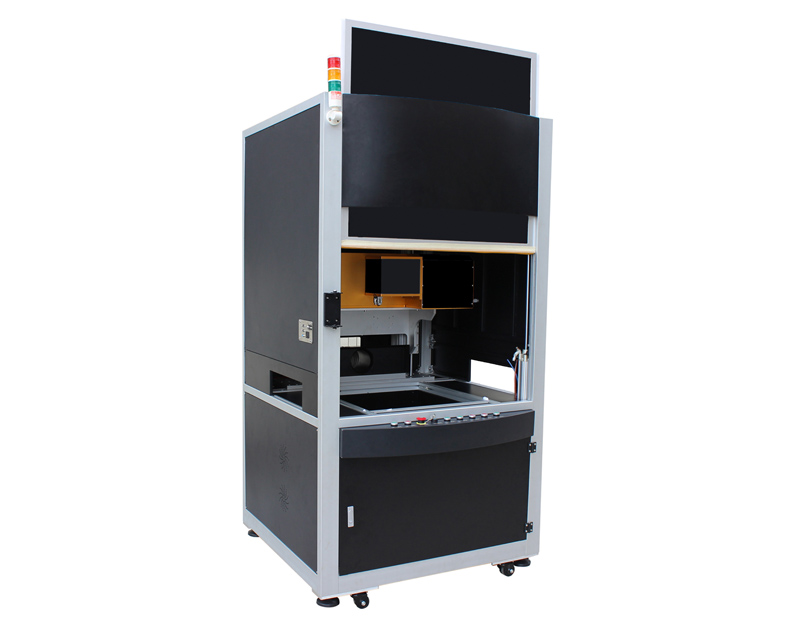

CO2 galvo laser system
Dotslaser CO2 Laser Marking Machine can be used for processing almost all the non metallic material ,assembled with metal RF laser tube ,make the laser stable and longer life time. .
Description
This system is used for cutting,marking and engraving non-metallic materials. asssembled with high quality components,very stable and high productive.
Application
Processing leather,cloth,textile,fabric,jeans,denim,reflective films,PU,TPU film,paper,card,rubber,acrylic,wood,bamboo,stone,pvc,ceramic,tile,glass,and so on.
Machine Features
1.High quality laser generator,keep stable laser output,fast marking speed, strong cutting ability,high precision.
2.Optional motorized Z to get perfect laser spot and laser intensity in different marking area.
3.3D dynamic galvanometer system, make sure bigger working range,but good uniformity.
4.Red light previewing system, ensuring processing accuracy,minimizing production wastes.
5. Marking area can be adjusted according to different precision requirements.
6. With class 1 level enclosed cover to ensure safety in working.
7. CCD is optional for viewing or positioning working status.
Parameters
| Model | DS-LM100,DS-LM250,DS-LM350 |
| Laser power | 100W,250W,350W |
| Laser wave | 10640nm |
| Optional Working area | 400mmx400mm~1000mmx1000mm |
| Laser Type | CO2 |
| Marking Speed | ≤8,000mm/s |
| Life of laser producer | 20,000hrs |
| Cooling Mode | Water Cooling |
| Power request | 220v 50Hz 5ph |
| Power consumption | ≤8000W |
| Working temperature | 0-38℃ |
Sample

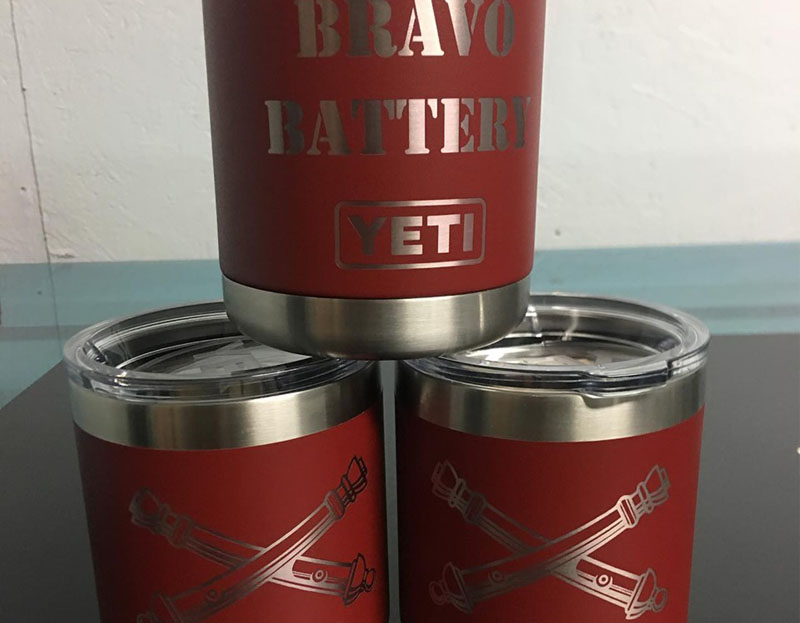

Engraing cups(removing painting)

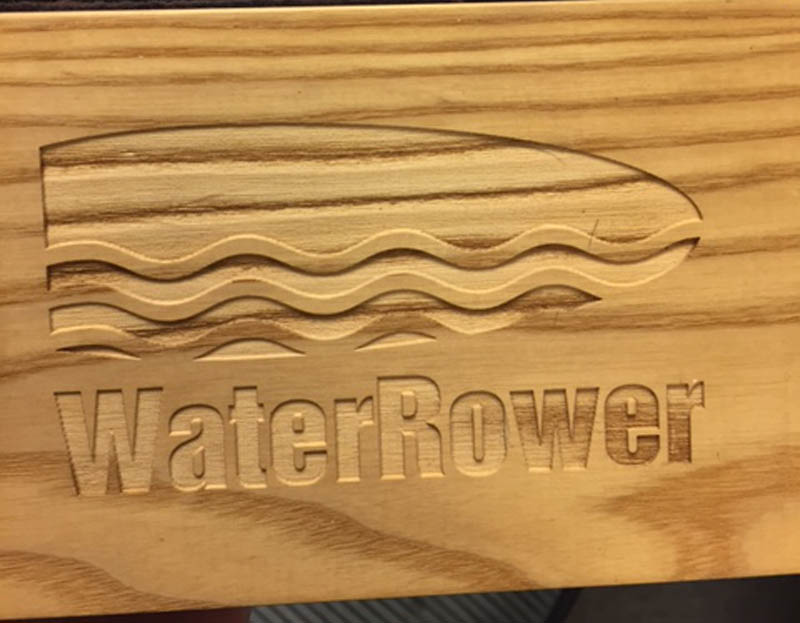

Wood engraving

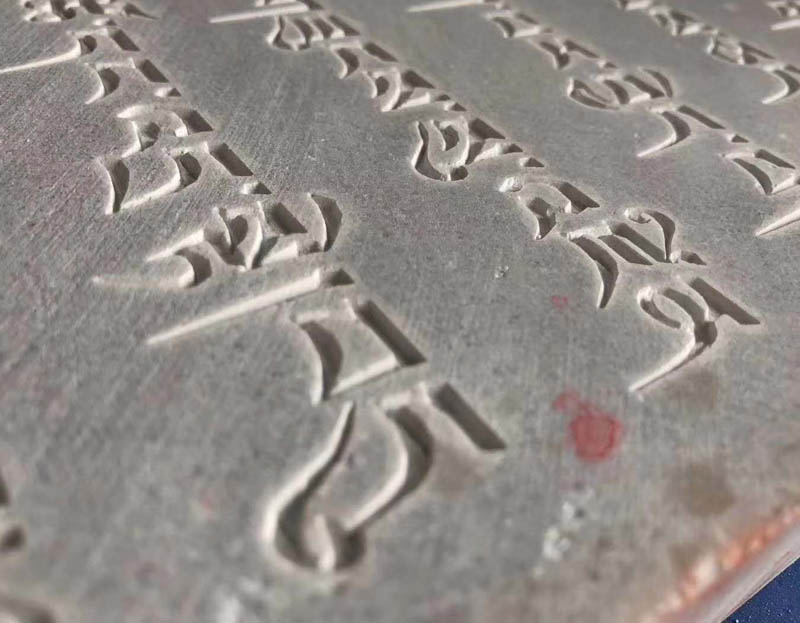

Stone engraving
Cutting TPU material

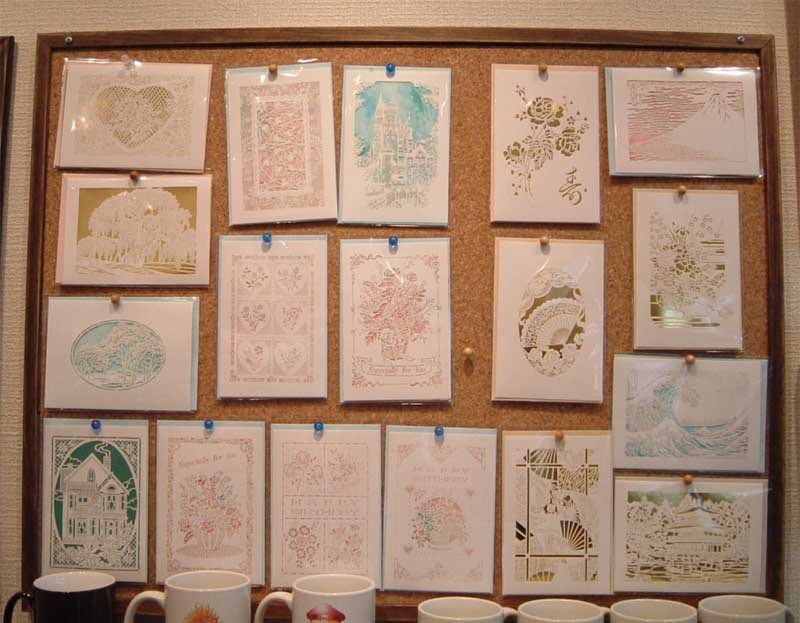

Cutting paper

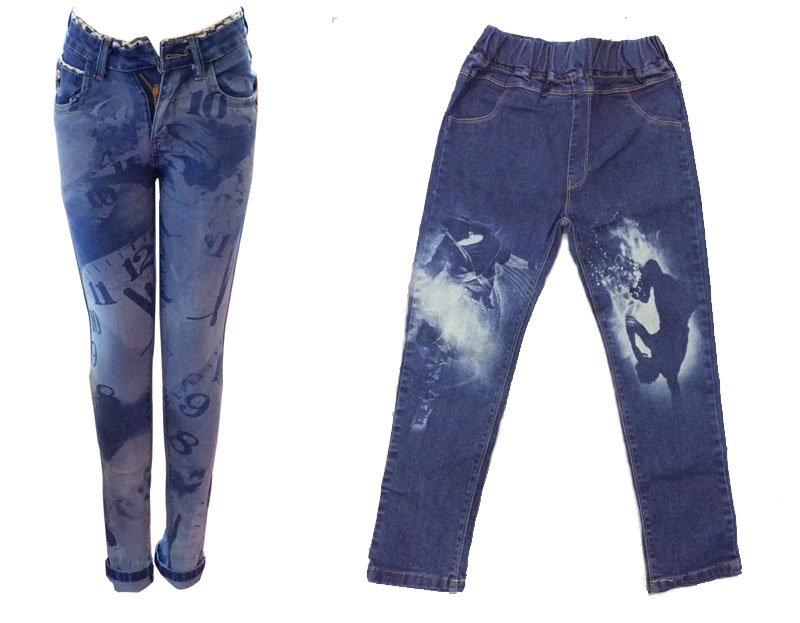

Jeans/Denim engraving
Leather engraving and cutting
Card engraving

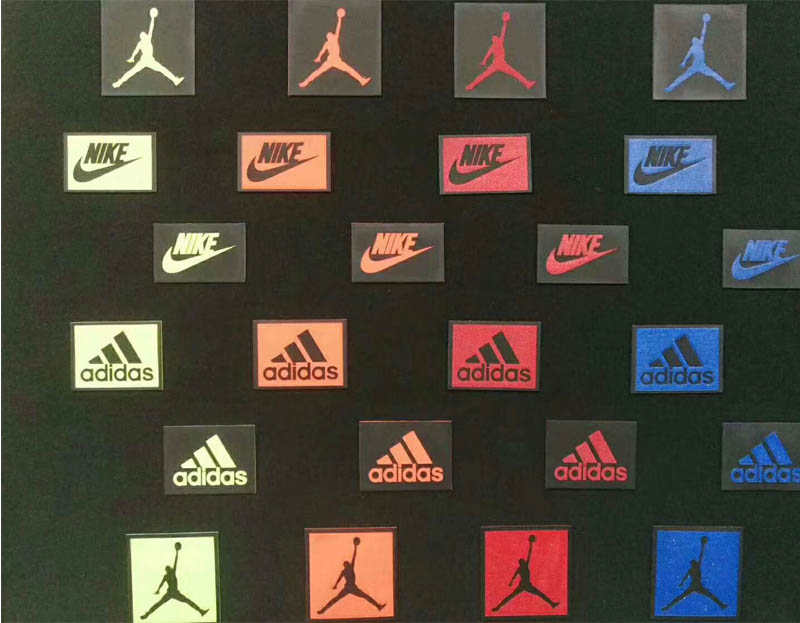

Garment accessories processing
