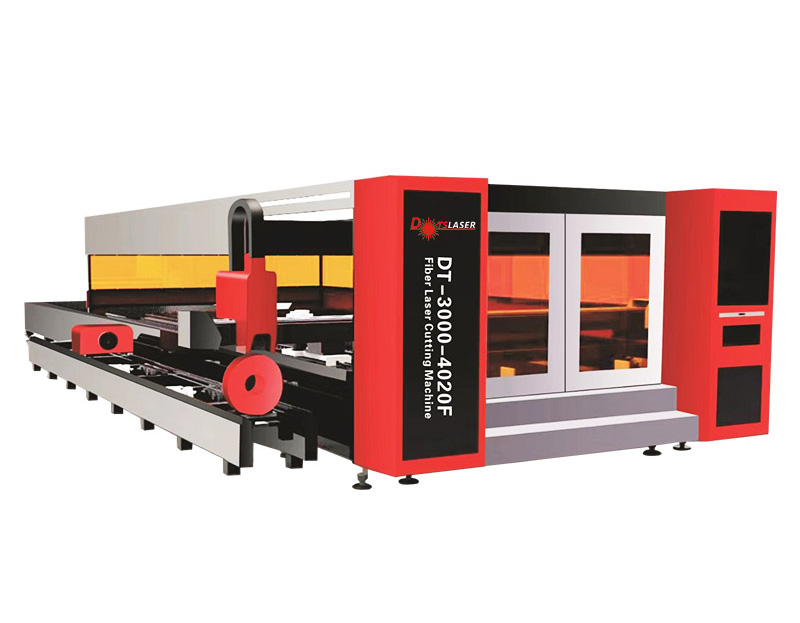

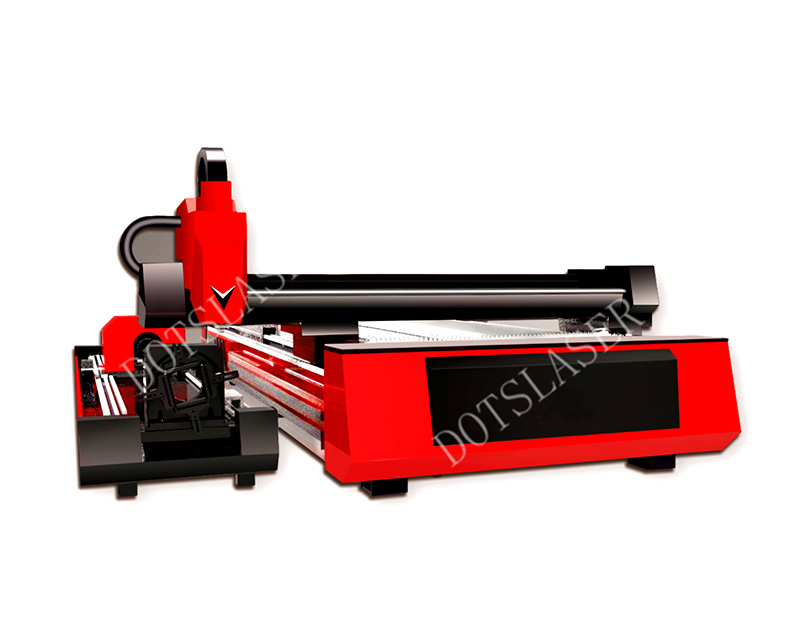

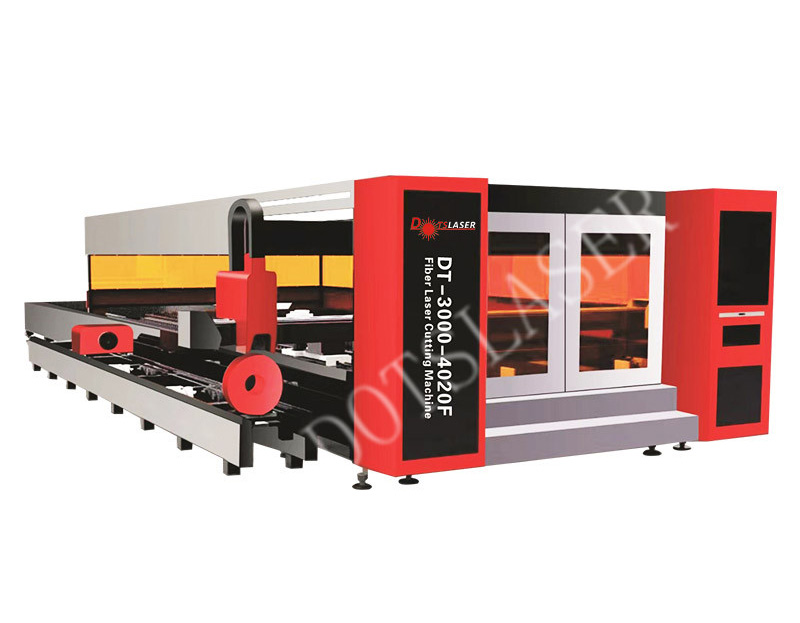

Stainless steel Fiber Laser Metal Sheet and Tube Cutting Machine

Fiber Laser Cutting Machine is applied for all metals cutting, Especially suitable for stainless steel, carbon steel, galvanized plate and so on.

Video
Product Details

Fiber Laser Cutting Machine is applied for all metals cutting, Especially suitable for stainless steel, carbon steel, galvanized plate and so on.


Widely used in sheet etal products, steel structure, precision machinery, auto parts, glasses, jewelry,nameplate, advertising, handicrafts, electronics, toys, packaging and other industries.


Parameters

ModelDS-3000-4020B
Laser power1000W-3000W
Laser wave1070nm
Working area3000mm*1500mm/4000mmx2000mm
X/Y-axis positioning accuracy±0.05mm
X/Y-axis re-positioning accuracy±0.03mm
X/Y-axis max travel speed120m/min
Cooling ModeWater Cooling
Power request380v 50hz 3ph
X,Y axle Max. accelerate speed1.2G
Working temperature0-45℃
Totally weight6000KG-7000KG


Advantages

1. Applicable to both pipe and plate cutting

2. Dual drive for front and back rotary axis,keeping cutting precision avoiding pipe damage

3. Clamping range 10-220mm without adjusting the clamp

4. fiber laser cutting machine can not only cut metal plates, but also metal tube. It has many uses and can save the space of more than 50%, which effectively improve productivity.


Characteristics

1. Stability and reliability of light path system and control system.

2. Imported original fiber lasers,high and stable function,lifespan is over     100000 hours.

3. Higher cutting quality and efficiency ,cutting speed is up to  80m/min with appearance and beautiful cutting edge.

4. German high performance reducer,gear and rack;Japanese guide and  all screw.

5. Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

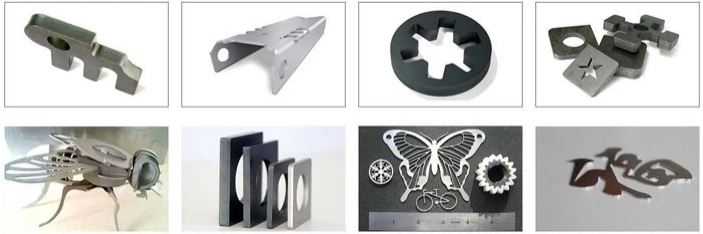

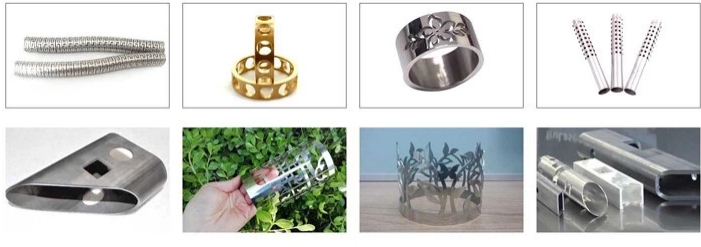

Samples

Stainless steel Fiber Laser Metal Sheet and Tube Cutting Machine

Stainless steel Fiber Laser Metal Sheet and Tube Cutting Machine
