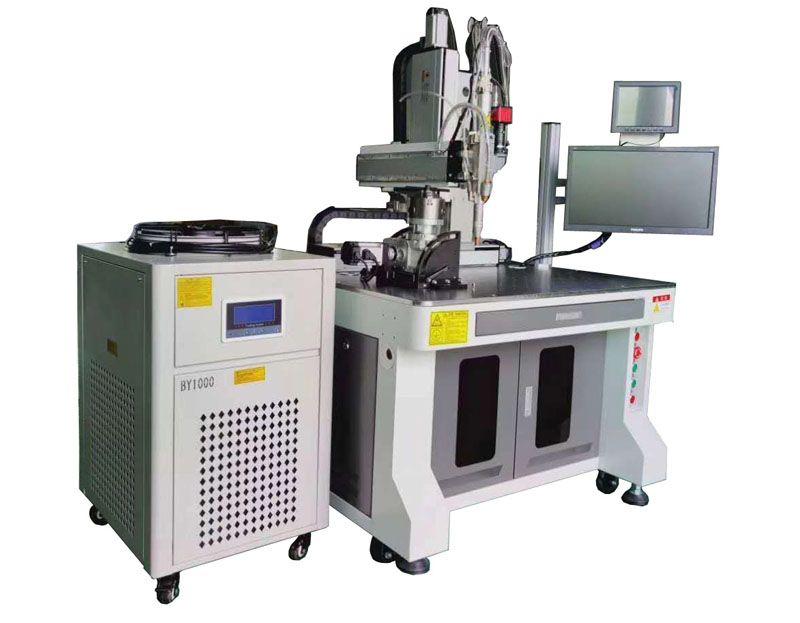

Galvo head type welding machine


galvo head type laser welding machine, scan head,battery welding system










Video
Product Details

Application areas:

It is suitable for welding metals such as gold, silver, titanium, nickel, tin, copper and aluminum and their alloy materials. It can realize the precise welding of the same metal and dissimilar metals.


Product Discription:

1. Fast welding speed, 4 to 10 times faster than YAG laser welding.

2. Better welding quality, 10: 1 welding aspect ratio, smooth and beautiful solder joints, the strength and toughness of the weld seam is comparable to or even exceeds the parent material.

3. High conversion rate, low energy consumption.long-term use can save a lot of processing costs for us.

4. High reliability, can be 24 hours continuous and stable processing, to meet the needs of industrial mass production and processing.

5. Special plane customization ability, according to customer demand tailored exclusive models.

6. Easy operating, easy training.

7. Safer, more environmentally friendly.

8. Industrial PC control, the workpiece can do plane trajectory movement, you can weld points, squares or straight lines and arcs composed of arbitrary planar graphics.

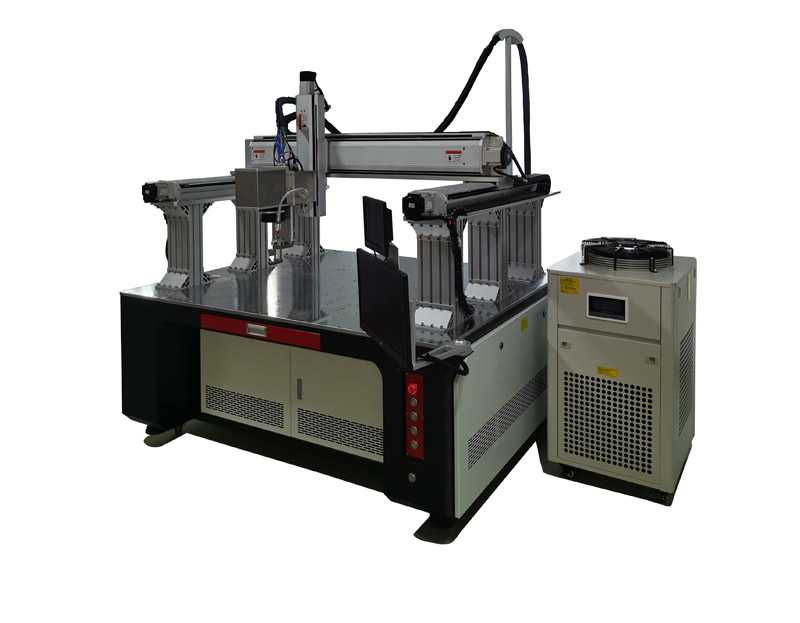

Automatic continuous laser welding machine

automatic continuous laser welding machine

Parameter:

NO.NameParameter
1Machine modelautomatic continuous laser welding machine
2laser power1000W/1500W
3laser wave length1070 nm
4Pulse frequency0~5Khz
5Fiber lengthstandard10M / Maximum 15M
6operate mode continuation/ modulate
7Repetition precision±0.05 mm
8Working environment temperature5~35 ℃
9Humidity range of working environment< 70% No condensation
10Welding thickness recommendations0.5-3mm
11CoolingWater cooled
12working voltage380 V

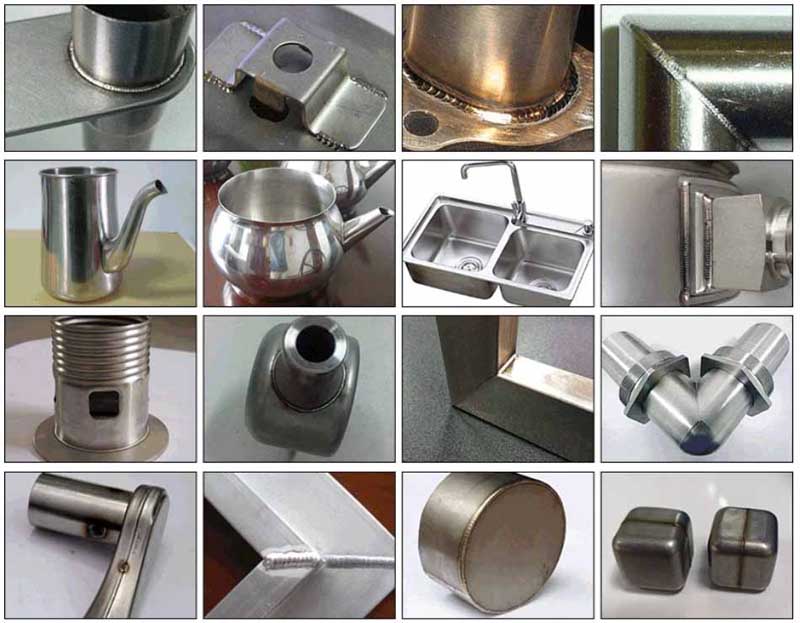

Samples:

automatic continuous laser welding machine
