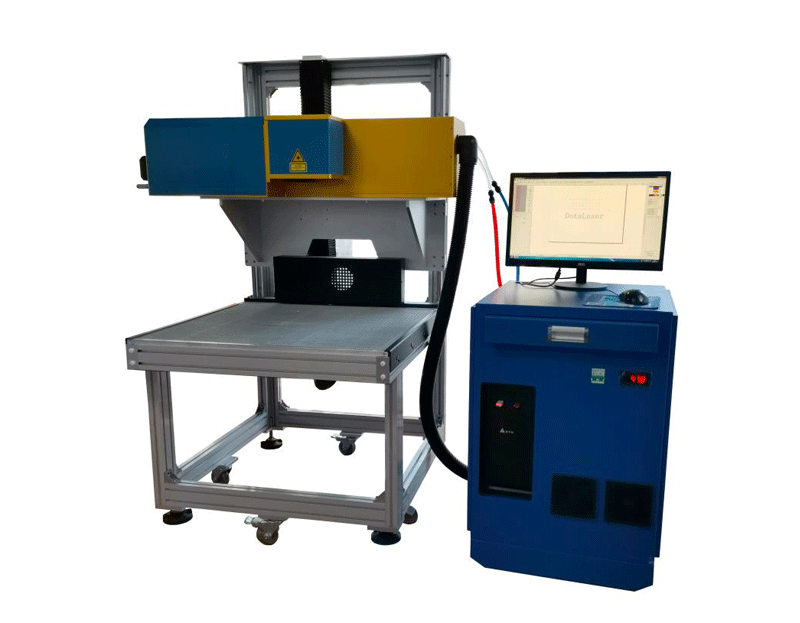

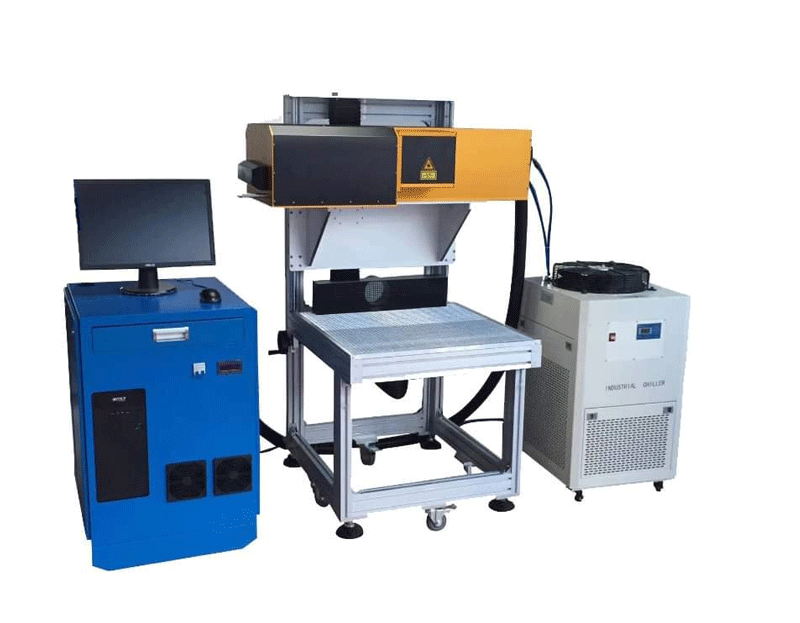

Co2 Laser Garments Marking Cutting Machine
Dotslaser CO2 Laser Marking Machine can be used for processing almost all the non metallic material ,assembled with metal RF laser tube ,make the laser stable and longer life time. .
Description
3D Dynamic CO2 laser marking machine mainly for marking and cutting big range nonmetal material, Like leather, fabric, arylic, paper etc with fast speed and high precision.
Application
CO2 Laser Marking Machine can be used for processing almost all the non-metallic material,such as leather,cloth,textile,fabric,reflective films,TPU, ,film,paper,wood,stone,pvc,ceramic,tile,glass,PU,and so on.
Machine Features
1.Stable laser output,fast marking speed, strong cutting ability,high precision.
2.Optional motorized Z to get best laser spot and laser intensity for different marking area size.
3.3D dynamic galvanometer system, fast marking speed, bigger workingrange.
4.With red light locating system, ensuring processing accuracy,minimizing production wastes.
Marking area can be adjusted according to different precision requirements.
Parameters
| Model | DS-LM |
| Laser power | 100W~300W |
| Laser wave | 10640nm |
| Optional Working area | 400mmx400mm~800mmx800mm |
| Laser Type | CO2 |
| Marking Speed | ≤8,000mm/s |
| Life of laser producer | 20,000Hrs |
| Cooling | Water Cooling |
| Power request | 220v 50Hz/60Hz 5ph |
| Power consumption | ≤8000W |
| Working temperature | 5-35℃ |
